Smart Crate is a highly engineered, reusable, modular, connected crating platform. Compared with wood boxes, it provides savings on packaging costs of up to 40% per shipment, and reduces product transit time by allowing crating to occur at the point of manufacture. Each crate is equipped with state-of-the-art sensor and communications technologies providing real-time location tracking and condition monitoring (temperature, humidity, shock, vibration, light, acceleration) for enhanced in-transit security. Smart Crate also helps companies address environmental initiatives by being multi-use and manufactured using all recyclable materials.
Over two years of highly focused design and engineering have gone into developing Smart Crate, a totally reimagined next-generation container that replaces costly, inefficient and environmentally destructive wood packaging. The result is the world’s most advanced shipping platform for high-tech and high-value cargo that is lighter, stronger, faster, smarter and better for the environment.
CONFIGURATION | DIMENSIONS L x W x H (in.) |
WEIGHT | LOAD (Transit - Dynamic) |
LOAD (Static) |
Pallet / Base (w/ Ramps & Channels) |
54 x 40 x 5.21 (External) |
64 Lbs. 29 Kgs. |
2,600 Lbs. 1,179 Kgs. |
10,000 Lbs. 4,536 Kgs. |
Single (1 Tier) |
49.2 x 36 x 25.9 (Internal) |
145 Lbs. 66Kgs. |
2,600 Lbs. 1,179 Kgs. |
10,000 Lbs. 4,536 Kgs. |

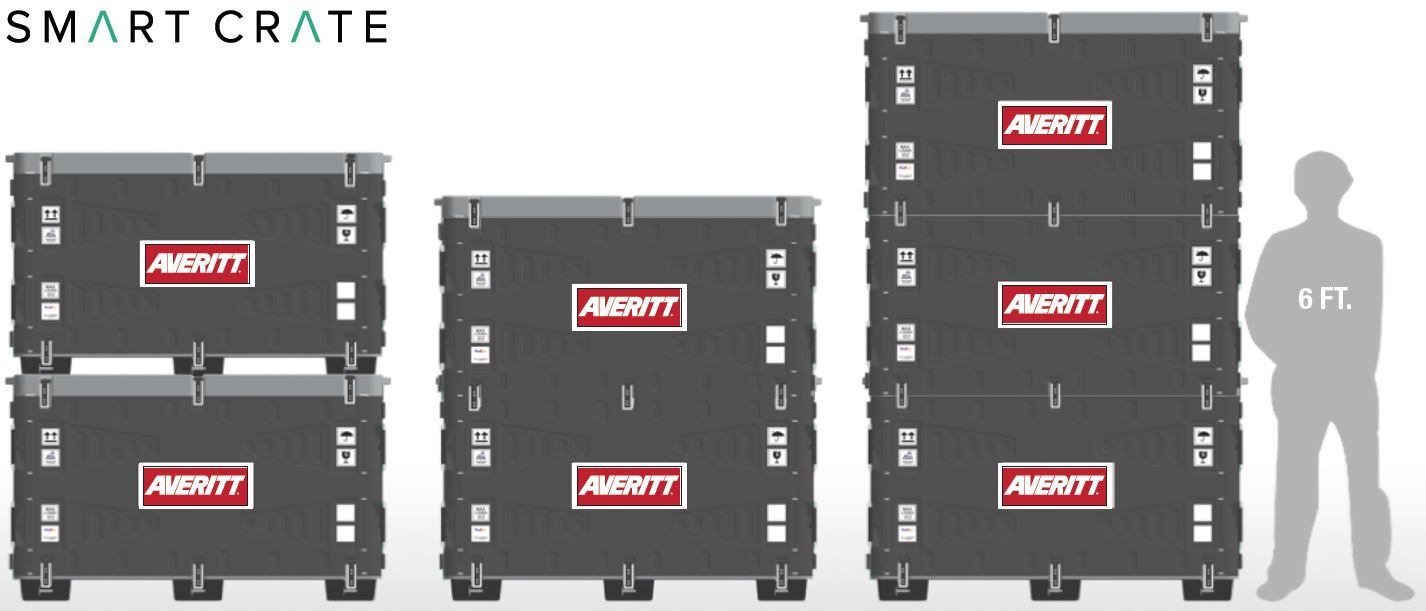

Double (2 Tier) |
49.2 x 36 x 53.9 (Internal) |
183 Lbs. 83 Kgs. |
2,600 Lbs. 1,179 Kgs. |
10,000 Lbs. 4,536 Kgs. |
